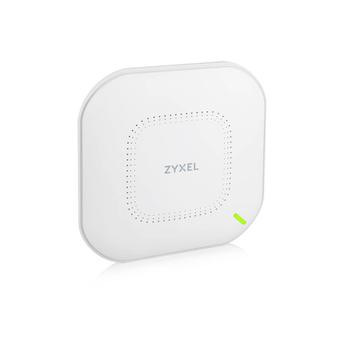

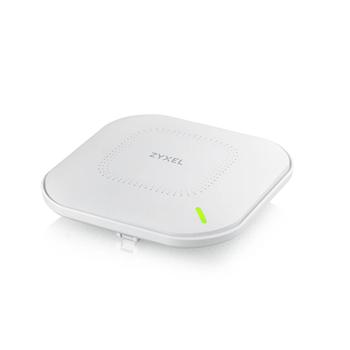

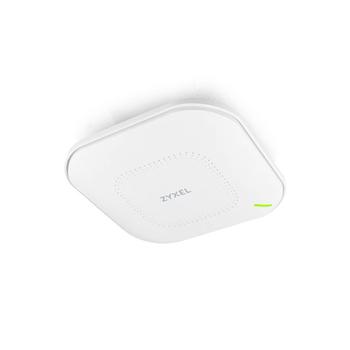

ZYXEL l NWA110AX - Radio access point - Wi-Fi 6 - 2.4 GHz, 5 GHz - DC power - cloud-managed
Frontpage
ZYXEL l NWA110AX - Radio access point - Wi-Fi 6 - 2.4 GHz, 5 GHz - DC power - cloud-managed
You have to log in to shop/see prices.
|
|
ZYXEL l NWA110AX - Radio access point - Wi-Fi 6 - 2.4 GHz, 5 GHz - DC power - cloud-managed
Product number:
NWA110AX-EU0102F
-
Speed
1Gbps
-
Type
Access point
|
Description
Specifications
WiFi 6, Wait No More
NWA110AX The Best Deal of 11ax Access Point
True WiFi 6
The NWA110AX is truly the next generation of wireless (WiFi 6) AP for businesses looking for a most economical upgrade path to 11ax. Its built-in 2nd Generation WiFi 6 (Qualcomm 802.11ax 2.0) chipset allows the access point to take advantage of the full range of WiFi 6 technologies including uplink OFDMA and MU-MIMO which can’t be found in earlier releases of 802.11ax products.
Simpler upgrade path
The NWA110AX has been designed to be highly efficient in PoE budget, allowing for an easy upgrade path for those wishing to experience all that WiFi 6 has to offer without the need to upgrade existing PoE+ switches
Manage it your way!
As it comes with support for NebulaFlex, Zyxel’s scalable, cloud-based management system, the NWA110AX can be managed via NCC (Nebula control Center) or simply operate alone (controller less). You can choose the way that is best suited to your needs.
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 575 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.412 - 2.472, 5.470 - 5.725 GHz |
| Bandwidth | 0.08 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Cabling technology | 10/100/1000Base-T(X) |
| Automatic channel selection | Yes |
| Automatic channel scanning | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Fast roaming | Yes |
| VLAN support | Yes |
| Virtual LAN features | SSID-based VLAN assignment |
| Band steering | Yes |
| Transmitting power | 22 dBmW |
| Receiver sensitivity | Min. Rx sensitivity up to -101 dBm |
| Security algorithms | WPA, WPA-PSK, WPA2, WPA2-Enterprise, WPA3 |
| Routing protocols | IP |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Web-based management | Yes |
| Command-line interface (CLI) | Yes |

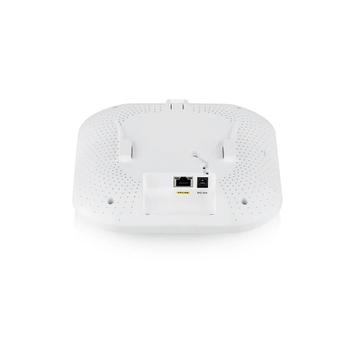

| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 5 - 12 V |
| Input current | 1.5 A |
| Power consumption (typical) | 17 W |
| Placement | Ceiling, Table, Wall |
| Product colour | White |
| On/off switch | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| LED indicators | Yes |
| Antenna type | Internal |
| Antenna features | Integrated antenna |
| Antennas quantity | 2 |
| Antenna gain level (max) | 6 dBi |
| Polarization | Dual polarization |
| Certification | FCC Part 15C
FCC Part 15E
ETSI EN 300 328
EN 301 893
LP0002
EMC
FCC Part 15B
EN 301 489-1
EN 301 489-17
EN55022
EN55024
EN61000-3-2/-3
EN60601-1-2
BSMI CNS13438
Safety
Safety EN 60950-1
IEC 60950-1
BSMI CNS14336-1 |
| Width | 180 mm |
| Depth | 180 mm |
| Height | 39 mm |
| Weight | 453 g |
| Package width | 229 mm |
| Package depth | 216 mm |
| Package height | 64 mm |
| Package weight | 770 g |
| Quantity per pack | 1 pc(s) |
| AC adapter included | Yes |
| Mounting kit | Yes |
| Quick start guide | Yes |
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Harmonized System (HS) code | 85176990 |
