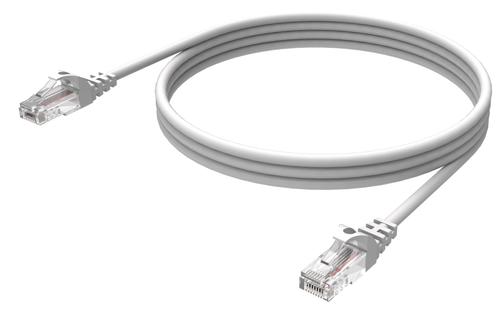

VISION RJ45 (m) to RJ45 (m) - UTP - CAT 6 - 250 MHZ - 24 AWG - booted - 2 m - white
You have to log in to shop/see prices.
|
|
VISION RJ45 (m) to RJ45 (m) - UTP - CAT 6 - 250 MHZ - 24 AWG - booted - 2 m - white
Product number:
TC 2MCAT6
-
Type
Cat6
-
Connector 1
RJ-45
-
Connector 2
RJ-45
-
Color
White
-
Length
2m
|
Description
Specifications
- RJ45 8P8C (male) to RJ45 8P8C (male)
- Colour: White
- U/UTP (unscreened)
- Stranded bare copper conductors
- Gold-plated RJ45 booted connectors
- Insulation: HDPE, diameter: 0.97 mm (0.04″)
- Sheath: PVC, thickness: 0.6 mm (0.02″); outer diameter: 6.2 mm (0.24″)
- Conductor thickness: 24AWG (7/0.2)
- Bandwidth: 250MHz
- Impedance (Ω) 100±15
- Delay Skew @ 20℃(ns/100m) ≤45
| Cable length | 2 m |
| Cable standard | Cat6 |
| Cable shielding | U/UTP (UTP) |
| Cable colour | White |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector gender | Male/Male |
| Connector contacts plating | Gold |
| Jacket material | Polyvinyl chloride (PVC) |
| Conductor type | Stranded |
| AWG wire size | 24 |
| Frequency | 250 MHz |
| Outer diameter | 6.2 mm |
| Input impedance | 100 Ω |
