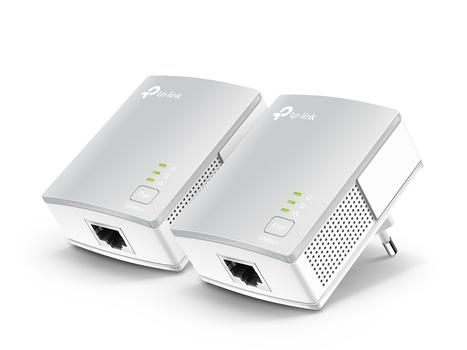

TP-LINK k TL-PA4010 KIT - Powerline adapter kit - HomePlug AV (HPAV) - wall-pluggable (pack of 2)
Frontpage
TP-LINK k TL-PA4010 KIT - Powerline adapter kit - HomePlug AV (HPAV) - wall-pluggable (pack of 2)
You have to log in to shop/see prices.
|
|
TP-LINK k TL-PA4010 KIT - Powerline adapter kit - HomePlug AV (HPAV) - wall-pluggable (pack of 2)
Product number:
TL-PA4010KIT
-
Host Interface
Power / Ethernet
-
Interface
Power line
-
Speed
600Mbps
-
Ports
1
|
Description
Specifications
Related products
AV500 Nano Powerline Adapter Starter Kit
TL-PA4010KIT
- HomePlug AV standard compliant, high-speed data transfer rates of up to 500Mbps
- Miniature design, smaller than most powerline adapters at the market, blends indiscreetly in front of any power outlet
- No new wires, Easy Plug and Play operation, No configuration required
- Patented Power-Saving Mode automatically reduces power consumption by up to 85%*
| HARDWARE FEATURES |
|---|
| Standards and Protocols | HomePlug AV, IEEE802.3, IEEE802.3u |
|---|
| Interface | 1*10/100Mbps Ethernet Port |
|---|
| Plug Type | EU, UK, US |
|---|
| Button | Pair Button |
|---|
| Dimensions (W X D X H) | 2.6 x 2.0 x 1.1 in.(65×52×28.5mm) |
|---|
| LED Indicator | PWR, PLC, ETH |
|---|
| Power Consumption | < 2.0 W |
|---|
| Range | 300M in house |
|---|
| SOFTWARE FEATURES |
|---|
| Modulation Technology | OFDM |
|---|
| Encryption | 128-bit AES Encryption |
|---|
| OTHERS |
|---|
| Certification | CE, FCC, RoHS |
|---|
| Package Contents | Powerline Ethernet Adapter
Ethernet cable (RJ45)
Resource CD,
Quick Installation Guide
|
|---|
| System Requirements | Windows 8/7/Vista/XP/2000, Mac, Linux |
|---|
| Environment | Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
|---|
Performance |
|---|
| Maximum data transfer rate | 600 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Built-in power socket | No |
| PowerLine standard | HomePlug AV |
| Modulation | OFDM |
| Security algorithms | 128-bit AES |
| Maximum operating distance | 300 m |
| Encryption button | Yes |
| Plug and Play | Yes |
Power |
|---|
| Power consumption (typical) | 4.26 W |
| Power consumption (standby) | 0.88 W |
Design |
|---|
| LED indicators | Yes |
| Product colour | White |
| Certification | CE, FCC |
System requirements |
|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions |
|---|
| Width | 65 mm |
| Depth | 52 mm |
| Height | 28.5 mm |
Technical details |
|---|
| Compliance certificates | RoHS |
Packaging content |
|---|
| Quantity per pack | 2 pc(s) |
| Quick installation guide | Yes |
| Cables included | LAN (RJ-45) |
Logistics data |
|---|
| Harmonized System (HS) code | 85171800 |
