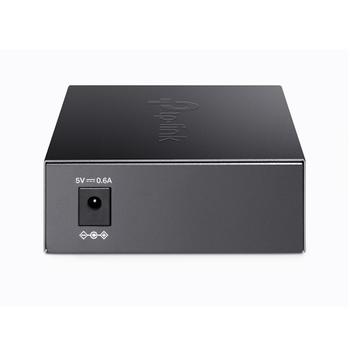

TP-LINK Gigabit Ethernet WDM Media Converter
Frontpage
TP-LINK Gigabit Ethernet WDM Media Converter
You have to log in to shop/see prices.
|
TP-LINK Gigabit Ethernet WDM Media Converter
Product number:
TL-FC311A-20
|
Description
Specifications
What This Product Does
TL-FC311A-20 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
How This Product Works
TL-FC311A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC311A-20 transmits data at 1550 nm wavelength and receives data at 1310 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC311A-2 should send data at a wavelength of 1310 nm and receive data at a wavelength of 1550 nm. TP-Link another media converter TL-FC311B-20 is one of the products that can cooperate with TL-FC311A-20.
- Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link's TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
Maximum data transfer rate | 1000 Mbit/s |
Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
Ethernet interface type | Gigabit Ethernet |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Data transfer rate | 1000 Mbit/s |
Maximum transfer distance | 20000 m |
Wavelength-division multiplexing (WDM) | Yes |
Fiber mode structure | Single-mode |
Fiber cable diameters supported (core/cladding) | 9/125 µm |
Internal | No |
LED indicators | Activity, Link, Power |
Product colour | Black |
Connectivity technology | Wired |
Ethernet LAN (RJ-45) ports | 1 |
Fiber ports quantity | 1 |
Fiber optic connector | SC |
DC-in jack | Yes |
Output voltage | 5 V |
Output current | 0.6 A |
Width | 94.5 mm |
Depth | 73 mm |
Height | 27 mm |
Operating temperature (T-T) | 0 - 50 °C |
Storage temperature (T-T) | -40 - 70 °C |
Operating relative humidity (H-H) | 10 - 90% |
Storage relative humidity (H-H) | 5 - 90% |
AC adapter included | Yes |
Quick installation guide | Yes |
Package width | 165 mm |
Package depth | 204 mm |
Package height | 65 mm |
Package weight | 560 g |
Harmonized System (HS) code | 85176990 |
