STARTECH StarTech.com Unmanaged 2.5G Switch, 5 Port Gigabit Switch, 2.5GBASE-T Unmanaged Ethernet Switch, Ethernet Splitter, Din Rail or Wall Mount, Multi-Gigabit, All-Metal, Auto-MDIX, 9K Jumbo - 2.5 Gb Netwo
-
Product
Unmanaged
-
Ports
5
-
Speed
2.5Gbps
|
Description
Specifications
2.5G switch | Multi-Gigabit | 5 port | Unmanaged | Cat5e/Cat6/Cat6a cabling | Wall mount kit | K-slot

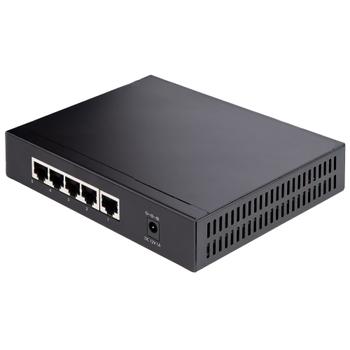

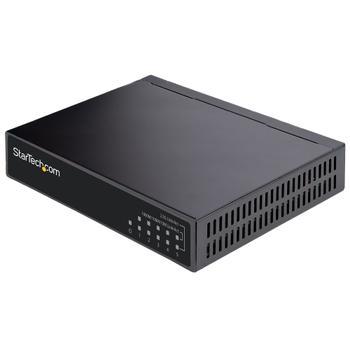

The unmanaged network switch offers five multi-speed Ethernet ports (10/100/1000/2500 Mbps) in a compact and durable all-metal casing while remaining silent and energy-efficient (IEEE 802.3az). The network switch is the ideal solution to dramatically speed up your network to support 2.5GBASE-T, and being an unmanaged switch, you can set it up in no time.
Enhance your network
This network switch allows you to use existing Cat5e/Cat6/Cat6a cabling to increase the bandwidth to 2.5 Gbps, ideal for large file transfers, streaming, network sharing/storage, or other bandwidth-intensive applications. Auto-negotiation detects the highest supported speeds on your devices for maximum performance and compatibility. You can also use it in combination with Wi-Fi 6 (802.11ax) wireless access points to expand your network range, bandwidth, and accessibility.
Secure and versatile
The 2.5G switch offers a security K-slot for more permanent and secure setups (cable not included). The unintrusive design and small dimensions (6.1x4.7x1.1 inch / 155x120x30 mm) make it easily adaptable to any deployment and has clear diagnostic LEDs that show the status of the devices at a glance. Additional features such as 9K jumbo frames, full-duplex, 16K MAC address table, QoS IEEE 802.1p, and wall mounting kit give you the flexibility to use it in a multitude of scenarios.
The DS52000 is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Switch type | Unmanaged |
Quality of Service (QoS) support | Yes |
Basic switching RJ-45 Ethernet ports quantity | 5 |
Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
2.5G Ethernet (copper) ports quantity | 5 |
Power connector | DC-in jack |
Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
10G support | No |
Copper ethernet cabling technology | 10BASE-T, 1000BASE-TX, 2500BASE-T |
Cable types supported | Cat5e, Cat6, Cat6a |
Full duplex | Yes |
Auto MDI/MDI-X | Yes |
Switching capacity | 2.5 Gbit/s |
Store-and-forward | Yes |
Jumbo frames support | Yes |
Jumbo frames | 9000 |
Rack mounting | No |
Product colour | Black |
Housing material | Steel |
LED indicators | Yes |
Wall mountable | Yes |
Maximum cable length | 100 m |
Power source | AC/DC |
Power supply included | Yes |
AC input voltage | 100 - 240 V |
Input current | 0.5 A |
Output voltage | 12 V |
Output current | 1 A |
Power plug type | Type M |
Power over Ethernet (PoE) | No |
Operating temperature (T-T) | 0 - 45 °C |
Storage temperature (T-T) | -20 - 60 °C |
Operating relative humidity (H-H) | 10 - 90% |
Width | 120 mm |
Depth | 145 mm |
Height | 30 mm |
Weight | 600 g |
Quick start guide | Yes |
Wall mounting kit | Yes |
AC adapter included | Yes |
Package width | 285 mm |
Package depth | 135 mm |
Package height | 70 mm |
Package weight | 700 g |
Compliance certificates | CE, RoHS |
Master (outer) case width | 305 mm |
Master (outer) case length | 370 mm |
Master (outer) case height | 290 mm |
Harmonized System (HS) code | 85176990 |
Products per master (outer) case | 10 pc(s) |
