STARTECH StarTech.com 4 Port HDMI Splitter 4K 60Hz
You have to log in to shop/see prices.
|
STARTECH StarTech.com 4 Port HDMI Splitter 4K 60Hz
Product number:
ST124HD202
-
Type
Video Switch / Splitter
|
Description
Specifications
1 In 4 Out Video Splitter | HDMI 2.0 | HDR | 2-Year Warranty

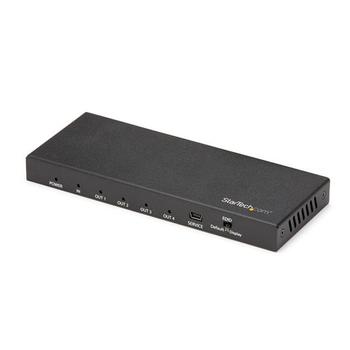

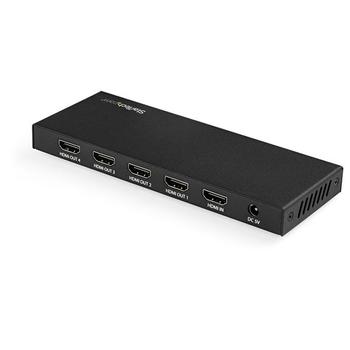

This 4-Port 4K HDMI splitter connects your HDMI video source to four HDMI displays at the same time, without distorting or degrading your video signal. For dependable performance, the splitter features a durable metal housing that provides passive cooling.
True 4K at 60Hz and HDR
With transmission bandwidth up to 18Gbps, this HDMI splitter is fully compatible with your HDMI 2.0 equipment, supporting UHD resolutions up to 4096x2160 (4K) at 60Hz. For smooth video and color transitions, the splitter offers 4:4:4 chroma subsampling, so every pixel gets its own unique color.
The splitter also supports High Dynamic Range (HDR) imaging, offering a greater luminosity than standard digital imaging.
Widely Compatible
The 4-way HDMI splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with almost any HDMI source, or destination device such as computers, Blu-ray players, monitors, TVs and projectors. Perfect for digital signage applications, where equipment may vary throughout your site.
Easy Installation
For hassle-free setup, the 1x4 HDMI splitter offers easy plug-and-play installation. The splitter also saves you setup time by automatically passing EDID between your video source and the display attached to port 1, ensuring settings like native resolution and refresh rate are configured properly.
ST124HD202 is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
Video ports quantity | 4 |
Video port type | HDMI |
Video out | 4x HDMI |
HDMI version | 2.0 |
Product colour | Black |
Maximum resolution | 3840 x 2160 pixels |
Full HD | Yes |
HD type | 4K Ultra HD |
Maximum refresh rate | 60 Hz |
HDCP | Yes |
Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160 |
Power LED | Yes |
Plug and Play | Yes |
Supported video modes | 720p, 1080p |
LED indicators | Yes |
Certification | CE, FCC, REACH |
AC input voltage | 100 - 240 V |
Input current | 1 A |
Output voltage | 5 V |
Output current | 0.2 A |
Power consumption (typical) | 5 W |
Width | 64 mm |
Depth | 165 mm |
Height | 65 mm |
Weight | 506 g |
Package width | 148 mm |
Package depth | 212 mm |
Package height | 55 mm |
User guide | Yes |
Included power plug types | AU, EU, NA, UK |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -20 - 60 °C |
Operating relative humidity (H-H) | 20 - 90% |
Maximum cable length | 5 m |
Supported audio channels | 7.1 |
Compliance certificates | RoHS |
Harmonized System (HS) code | 85176990 |
