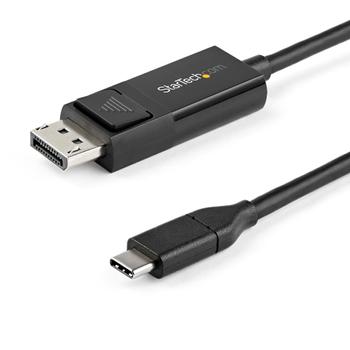

STARTECH StarTech.com 2m USBC to DP 1.2 Bidirectional 4K 60Hz
You have to log in to shop/see prices.
|
STARTECH StarTech.com 2m USBC to DP 1.2 Bidirectional 4K 60Hz
Product number:
CDP2DP2MBD
-
Type
Video Converter
-
Connector 1
USB C
-
Connector 2
DisplayPort
-
Color
Black
-
Length
2m
|
Description
Specifications
USB Type-C™ Adapter Cable | 4K 60Hz | Thunderbolt 3™
This USB-C™ to DisplayPort™ 1.2 cable lets you connect your USB Type-C™ (or Thunderbolt 3™) device to a DisplayPort display, or a DP device to a USB-C display with just one cable.
Easy & Clutter-Free Installation
At 6.6 ft. (2 m) in length, this bidirectional adapter cable delivers a direct connection that eliminates excess adapters and cabling, ensuring a tidy, professional installation. For shorter installations, we also offer a 3.3 ft. (1 m) USB-C to DP cable, enabling you to choose the right cable length for your custom installation needs.
As well, the cable works with both Mac and Windows devices and allows for plug-and-play installation, removing the need for any additional software or drivers.
Convenient, Bi-Directional Support
Use this USB-C to DisplayPort adapter cable to output 4K video and audio to a DP display from the USB Type-C (or Thunderbolt 3) port on your laptop or mobile device. With bi-directional capabilities, this cable can also connect your DisplayPort-enabled devices to a display featuring USB-C input.
Ultra HD 4K Resolution at 60Hz
This USB-C to DP 1.2 adapter cable lets you harness the video capabilities that are built into your computer's USB Type-C (or DisplayPort) connection, to deliver the astonishing quality of UHD to your 4K display. For even higher resolution and bandwidth support, we offer a USB-C to DP 1.4 cable, which is the perfect accessory for early adopters of 8K.
CDP2DP2MBD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: Your USB 3.1 Type-C device must support DP Alt Mode to work with this cable.
The StarTech.com Advantage
Cable length | 2 m |
Connector 1 | USB Type-C |
Connector 2 | DisplayPort |
Connector 1 gender | Male |
Connector 2 gender | Male |
Connector 1 form factor | Straight |
Connector 2 form factor | Straight |
HDCP | Yes |
HDCP version | 1.4/2.2 |
DisplayPort version | 1.2 |
High Dynamic Range (HDR) supported | Yes |
Maximum resolution | 3840 x 2160 pixels |
Bandwidth | 21600 MB/s |
Maximum refresh rate | 60 Hz |
HBR2 support | Yes |
Product colour | Black |
Chipset | Chrontel - CH7213C-BF, VIA Labs - VL170 |
Supported audio channels | 7.1 |
Plug and Play | Yes |
Converter type | Active video converter |
Operating temperature (T-T) | 0 - 45 °C |
Storage temperature (T-T) | -10 - 70 °C |
Operating relative humidity (H-H) | 10 - 85% |
Weight | 77 g |
Width | 220 mm |
Depth | 2038 mm |
Height | 12 mm |
Quantity per pack | 1 pc(s) |
Package width | 226 mm |
Package depth | 124 mm |
Package height | 12 mm |
Package weight | 84 g |
Compliance certificates | CE, RoHS |
Harmonized System (HS) code | 84733080 |
Master (outer) case width | 327 mm |
Master (outer) case length | 497 mm |
Master (outer) case height | 212 mm |
Products per master (outer) case | 80 pc(s) |
