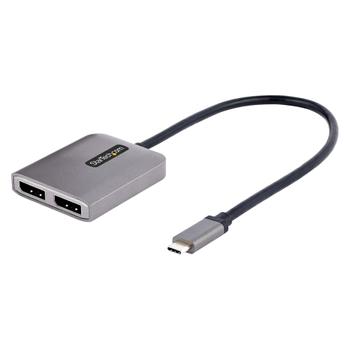

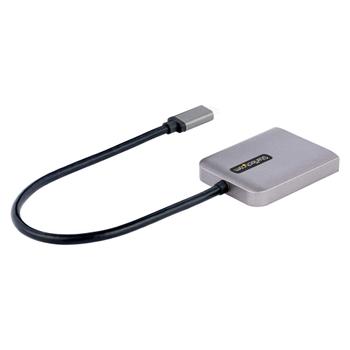

STARTECH StarTech.com 2 Port USB C to Dual DisplayPort MST Hub 4K 60Hz
You have to log in to shop/see prices.
|
STARTECH StarTech.com 2 Port USB C to Dual DisplayPort MST Hub 4K 60Hz
Product number:
MST14CD122DP
|
Description
Specifications
Create a high-performance dual-display workstation by connecting a USB Type-C™ device to two independent DisplayPort™ monitors
This USB-C to DisplayPort MST Hub enables a connection to two DisplayPort monitors, using a DisplayPort Alternate Mode (DP Alt Mode) capable USB-C host device.
4K at 60Hz with HDR
Multi-Stream Transport (MST) technology combines multiple video signals into a single output signal/stream. This MST Hub separates the single input stream into two independent signals, one for each DisplayPort-enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and luminosity.
Host Connection
Maximum Resolution
Output 1
Maximum Resolution
Output 2
Example Host
Processor/Graphics
DisplayPort 1.4 with DSC
5K 60Hz
5K 60Hz
*Intel 11th Gen with DSC
Intel 12th Gen Processors & Later
Discrete AMD & Nvidia GPU's that support DSC
DisplayPort 1.4
4K 60Hz
4K 60Hz
Intel 10th Gen (Ice Lake Only)
Intel 11th Gen Processors & Later
Discrete AMD and Nvidia GPU's that support DP 1.4
DisplayPort 1.2
4K 30Hz
4K 30Hz
Intel 8th - 10th Gen Processors & Later
Multitasking Made Easy
Configure the dual-DP displays in extended or mirrored mode. Create a high-performance workstation by adding two independent 4K 60Hz displays. This empowers increased multi-tasking across your organization, resulting in increased productivity.
Hassle-Free Setup
Windows devices supporting DP Alt Mode over USB-C feature native support for MST. This USB-C to DP hub is compatible Thunderbolt 3/4 and USB4-enabled Windows devices with 11th generation (and later) processors. Plug-and-play installation, with no drivers or software required. The 12in (30cm) built-on cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this dual-monitor splitter is bus-powered, requiring no external power source.
This product is backed for 3 years, including free lifetime 24/5 multilingual technical assistance.
The StarTech.com Advantage
USB connector type | USB Type-C |
USB connector gender | Male |
USB connector form factor | Straight |
DVI output | No |
HDMI output | No |
DisplayPort output | Yes |
High Dynamic Range (HDR) supported | Yes |
Number of displays supported | 2 |
DisplayPorts quantity | 2 |
HDCP | Yes |
HDCP version | 2.2 |
DisplayPort version | 1.4 |
Maximum resolution | 4096 x 2160 pixels |
Refresh rate at maximum resolution | 60 Hz |
Audio output channels | 2.0 channels |
Chipset | Synaptics - VMM5220, VIA/VLI - VL103 |
Product colour | Grey |
Housing material | Plastic |
Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64 |
USB cable length | 0.3 m |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -40 - 70 °C |
Operating relative humidity (H-H) | 5 - 90% |
Package width | 142 mm |
Package depth | 170 mm |
Package height | 30 mm |
Package weight | 108.8 g |
Compliance certificates | CE, RoHS |
Sustainability compliance | Yes |
Products per master (outer) case | 70 pc(s) |
Master (outer) case width | 473 mm |
Master (outer) case length | 331 mm |
Master (outer) case height | 440 mm |
