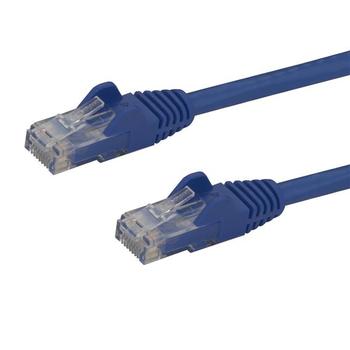

STARTECH StarTech.com 1.5m CAT6 Blue GbE RJ45 UTP Patch Cable
You have to log in to shop/see prices.
|
STARTECH StarTech.com 1.5m CAT6 Blue GbE RJ45 UTP Patch Cable
Product number:
N6PATC150CMBL
-
Type
Cat6
-
Connector 1
RJ-45
-
Connector 2
RJ-45
-
Color
Blue
-
Length
1.5m
|
Description
Specifications
1.5 m CAT6 Patch Cable | Snagless | 100% Copper Wire | Blue | ETL Verified
This CAT6 cable meets all Category 6 cable specifications, to deliver a reliable Gigabit network connection.
Protect Your Equipment
This CAT6 patch cable is built using 100% copper wire and are tested to comply with ANSI/TIA 568 C.2 Category 6 requirements. We don’t use copper-clad aluminum (CCA) wire, which is subject to problems like weak power delivery, heat buildup, equipment damage and possibly fire.
The 50-micron gold connectors deliver optimum conductivity and eliminate signal loss due to oxidation or corrosion.
High-Quality Construction
The CAT6 cable is manufactured using high-quality copper conductors and carefully constructed and tested to keep Near-End Crosstalk (NEXT) well within acceptable limits. The patch cable is constructed with 24 AWG copper wire, to ensure peak performance for demanding Ethernet applications such as Power-over-Ethernet and 4K or 1080p video streaming.
Easily Install Your Network Cables

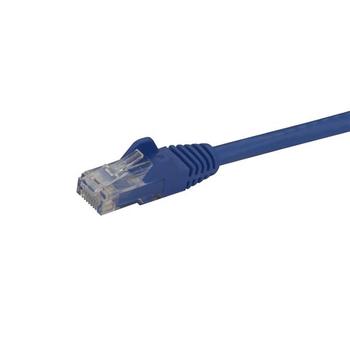

For trouble-free cable runs, this durable cable feature snagless connectors that protect the RJ45 clips during installation, making them less likely to snag or break.
The CAT6 Ethernet cable also features molded boots which offer strain relief by stopping the RJ45 connectors from bending at sharp angles. This reduces the risk of cable damage, which could decrease network connectivity and performance.
N6PATC150CMBL is backed by a StarTech.com lifetime warranty for guaranteed reliability.
The StarTech.com Advantage
- HIGH PERFORMANCE CAT6 ETHERNET CABLE: 100% copper for error-free Multi Gigabit 1/2.5/5Gbps connections; 10Gbps up to 50m; Fluke patch cord tested to comply w/ANSI/TIA-568-2.D Category 6 & ETL Verified
- POE SUPPORT: 24 AWG stranded copper conductors & UL Rated Wiring (E132276-A) supports up to 100W for PoE devices like VOIP phone & security systems; IEEE 802.3bt & DTE power compliance reduces cable heating
- QUALITY CONSTRUCTION: ETL & UL certified wire; 50-micron gold-plated connectors prevent rust/corrosion to avoid costly network downtime; High quality PVC jacket resists bending or fraying damage
Cable length | 1.5 m |
Cable standard | Cat6 |
Cable shielding | U/UTP (UTP) |
Product colour | Blue |
Connector 1 | RJ-45 |
Connector 2 | RJ-45 |
Connector 1 gender | Male |
Connector 2 gender | Male |
Connector contacts plating | Gold |
Jacket material | Polyvinyl chloride (PVC) |
Conductor type | Stranded |
Conductor material | Copper |
Cable rating | CMG (CM) |
Cabling technology | 10/100/1000Base-T(X) |
Ethernet interface type | Gigabit Ethernet |
AWG wire size | 24 |
Data transfer rate | 1000 Mbit/s |
Frequency | 650 MHz |
Power over Ethernet (PoE) | Yes |
Snagless cable boot | Yes |
Plug and Play | Yes |
Certification | CE, ETL, REACH |
Width | 11.6 mm |
Height | 8.2 mm |
Weight | 70 g |
Quantity per pack | 1 pc(s) |
Package width | 220 mm |
Package depth | 200 mm |
Package weight | 80 g |
Compliance certificates | RoHS |
Harmonized System (HS) code | 84733080 |
Master (outer) case width | 370 mm |
Master (outer) case length | 405 mm |
Master (outer) case height | 270 mm |
Products per master (outer) case | 120 pc(s) |
