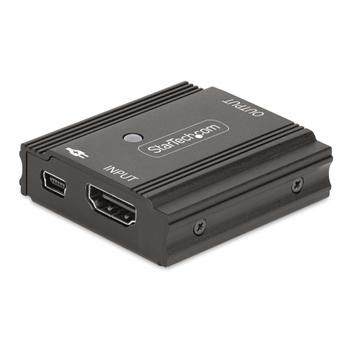

STARTECH StarTech.com 10m 8K 60Hz Active HDMI 2.1 Signal Booster
You have to log in to shop/see prices.
|
|
STARTECH StarTech.com 10m 8K 60Hz Active HDMI 2.1 Signal Booster
Product number:
33FT-8K-HDMI-BOOSTER
|
Description
Specifications
Amplify and extend an 8K 60Hz HDMI® signal, connecting two DSC-enabled devices, using two Ultra High Speed HDMI cables
Combine two HDMI 2.1 cables into one extra-long 33ft (10m) cable, using this HDMI Signal Booster. Connect a DSC-enabled source and display for resolutions of up to 8K at 60Hz.
Maintain 8K 60Hz Video
Extend an 8K 60Hz HDMI signal over existing HDMI cabling at up to 33ft (10m). It supports lower resolutions at longer distances, such as 4K 60Hz at 83ft (25m). This HDMI 2.1 compliant device supports CEC, HDR10, HDCP, DSC, and 7.1ch audio.
Cable Length
from Source
Cable Length
to Display
Total Cable Length
Maximum
Resolution
13ft (4m)
20ft (6m)
33ft (10m)
8K 60Hz
33ft (10m)
50ft (15m)
83ft (25m)
4K 60Hz
65ft (20m)
82ft (25m)
150ft (45m)
1080p
Hassle-Free Installation
The TAA-Compliant HDMI signal amplifier requires no drivers or software. Its compact form factor and metal enclosure make it suitable for installation in a variety of environments. An included 5ft (1.5m) USB Type-A power cable is provided to connect to an available USB port or USB wall charger, if required.
The StarTech.com Advantage
Features |
|---|
| Type | AV repeater |
| Maximum resolution | 7680 x 4320 pixels |
| Maximum transfer distance | 10 m |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| Maximum refresh rate | 144 Hz |
| Audio output channels | 7.1 channels |
| LED indicators | Power |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 2560 x 1080, 3440 x 1440, 3840 x 2160, 5120 x 1440, 7680 x 4320 |
| Bandwidth | 48 Gbit/s |
| HDCP | Yes |
| Rack mounting | No |
| Consumer Electronics Control (CEC) support | Yes |
| Plug and Play | Yes |
| Daisy chain | No |
| HDCP version | 1.4/2.2/2.3 |
| Product colour | Black |
Ports & interfaces |
|---|
| Connectivity technology | Wired |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| HDMI version | 2.1 |
| USB ports quantity | 1 |
| USB connector type | Mini-USB |
Power |
|---|
| Power source type | USB |
Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions |
|---|
| Width | 46 mm |
| Depth | 49 mm |
| Height | 16 mm |
| Weight | 57 g |
Packaging data |
|---|
| Package width | 168 mm |
| Package depth | 143 mm |
| Package height | 63 mm |
| Package weight | 60 g |
Packaging content |
|---|
| Cables included | Mini-USB |
| Quick start guide | Yes |
Logistics data |
|---|
| Master (outer) case width | 409 mm |
| Master (outer) case length | 309 mm |
| Master (outer) case height | 200 mm |
| Products per master (outer) case | 12 pc(s) |
