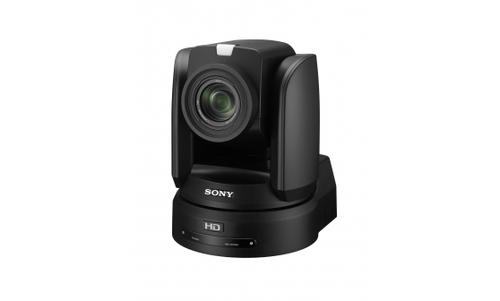

SONY y BRC-H800 - Conference camera - PTZ - colour (Day&Night) - 20.4 MP - 850 TVL - HDMI, 3G-SDI - DC 10.8 - 13.2 V / PoE Plus
Frontpage
SONY y BRC-H800 - Conference camera - PTZ - colour (Day&Night) - 20.4 MP - 850 TVL - HDMI, 3G-SDI - DC 10.8 - 13.2 V / PoE Plus
You have to log in to shop/see prices.
|
SONY y BRC-H800 - Conference camera - PTZ - colour (Day&Night) - 20.4 MP - 850 TVL - HDMI, 3G-SDI - DC 10.8 - 13.2 V / PoE Plus
|
Description
Specifications
Remotely capture broadcast quality Full HD images with smooth, silent PTZ and excellent low-light sensitivity.
The BRC-H800 remote camera combines uncompromising broadcast picture quality and smooth, silent PTZ operation with the flexibility of 3G-SDI and HDMI connections.
Designed for unattended operation, this compact but powerful robotic camera is an ideal complement to other broadcast cameras for capturing images in hard-to-reach or unobtrusive positions. It's equally at home in TV newsrooms, remote studios and on-air suites, auditoriums, houses of worship, courtrooms or sports stadiums. It's also particularly suited to efficient multi-camera set-ups, under the control of a single operator.
The 1-inch type Exmor R CMOS image sensor captures crisp, low-noise Full HD images at 60p, with excellent low-light sensitivity. The large image sensor also allows the creation of beautiful 'bokeh' effects with a shallow depth of field to suit any artistic intention.
Speedy, near-silent PTZ operation with 12x optical zoom accommodates wide-angle scenes and tightly framed close-ups, with Clear Image Zoom 24x(HD) extending this range even further without visible loss of resolution. Broadcast-friendly features include dual tally lamps for on-air operation, while operational flexibility is enhanced with options for ceiling, table top or tripod mounting. There’s also a broad range of video interfacing and remote control possibilities - plus support for PoE+ and genlock - for smooth integration into any broadcast, professional or corporate AV environment.
Type | IP security camera |
Placement supported | Indoor |
Preset points | Yes |
Day/night mode | Yes |
Light exposure modes | Aperture priority AE, Auto, Manual |
Form factor | Dome |
Mounting type | Ceiling |
Product colour | Black |
Minimum illumination | 1.7 lx |
Lens viewing angle, horizontal | 64.6° |
Tilt angle range | -30 - 90° |
Tilt speed | 60 °/sec |
Pan range | -170 - 170° |
Pan speed | 60 °/sec |
White balance | Auto, Indoor, Manual, One push, Outdoor |
Preset programs quantity | 16 |
Camera shutter speed | 1/6 s |
Sensor type | CMOS |
Optical zoom | 12x |
Focus | Motorized/Manual |
Focal length range | 9.3 - 111.6 mm |
Gain control type | Auto/Manual |
Automatic gain control | Yes |
Full HD | Yes |
Flip & mirror | Yes |
Ethernet LAN | Yes |
Networking standards | IEEE 802.1Qaz |
Ethernet LAN (RJ-45) ports | 2 |
RS-422 ports | 1 |
HDMI ports quantity | 2 |
Remotely operated | Yes |
Power source type | PoE |
Power consumption (typical) | 19 W |
Power consumption (Power over Ethernet (PoE)) | 23 W |
Power over Ethernet (PoE) | Yes |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -20 - 60 °C |
Width | 198 mm |
Depth | 260 mm |
Height | 238 mm |
Weight | 4.3 kg |
Number of cameras | 1 |
Remote control included | Yes |
Mounting kit | Yes |
Screws included | Yes |
Harmonized System (HS) code | 85258900 |
