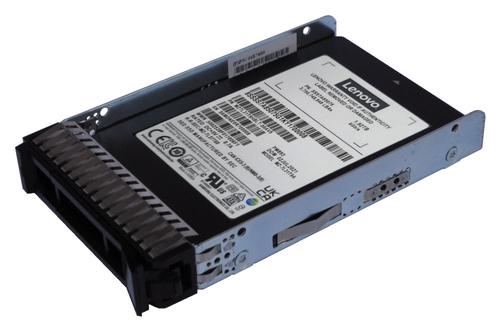

LENOVO o ThinkSystem PM893 - SSD - Read Intensive - 960 GB - hot-swap - 2.5" - SATA 6Gb/s - for ThinkSystem SN550 V2, SR630 V2, SR645, SR650 V2, SR670 V2, SR850 V2, SR860 V2, ST650 V2
Frontpage
LENOVO o ThinkSystem PM893 - SSD - Read Intensive - 960 GB - hot-swap - 2.5" - SATA 6Gb/s - for ThinkSystem SN550 V2, SR630 V2, SR645, SR650 V2, SR670 V2, SR850 V2, SR860 V2, ST650 V2
You have to log in to shop/see prices.
|
|
LENOVO o ThinkSystem PM893 - SSD - Read Intensive - 960 GB - hot-swap - 2.5" - SATA 6Gb/s - for ThinkSystem SN550 V2, SR630 V2, SR645, SR650 V2, SR670 V2, SR850 V2, SR860 V2, ST650 V2
Product number:
4XB7A72439
|
Description
Specifications
The ThinkSystem PM893 Read Intensive SATA SSDs are general-purpose SSDs based on the Samsung PM893 platform and are available in capacities ranging from 480GB to 7.86TB. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.
This product guide provides essential presales information to understand the PM893 SSDs and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
| SSD form factor | 2.5" |
| SSD capacity | 960 GB |
| Interface | Serial ATA III |
| Memory type | V-NAND TLC |
| Component for | Server/workstation |
| Hardware encryption | No |
| Data transfer rate | 6 Gbit/s |
| Random read (4KB) | 98000 IOPS |
| Random write (4KB) | 31000 IOPS |
| Random latency - read (up to) | 120 µs |
| Random latency - write (up to) | 40 µs |
| S.M.A.R.T. support | Yes |
| Hot-swap | Yes |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 2000000 h |
| Drive writes per day (DWPD) | 1 |
| Certification | UL
TUV
FCC
CE Mark
C-Tick Mark
BSMI (Taiwan)
KCC (Korea EMI) |
| Power consumption (read) | 2.2 W |
| Power consumption (write) | 3.2 W |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Non-operating vibration | 20 G |
| Non-operating shock | 1500 G |
| Maximum operating altitude | 3050 m |
| Width | 70 mm |
| Depth | 100 mm |
| Height | 7 mm |
| Weight | 58 g |
| Package width | 133 mm |
| Package depth | 174 mm |
| Package height | 63 mm |
| Package weight | 433 g |
