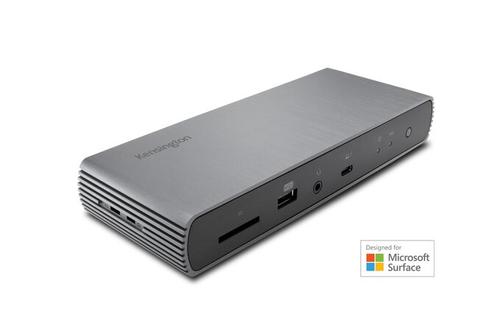

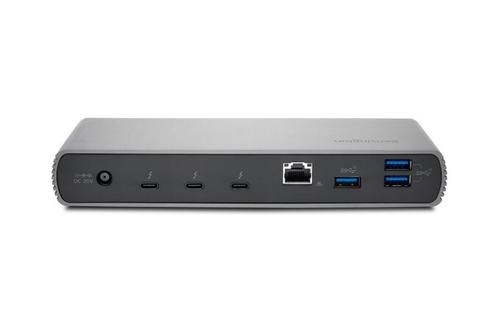

KENSINGTON n SD5750T - Docking station - Thunderbolt 4 - 3 x Thunderbolt - 1GbE - 180 Watt - for Microsoft Surface Laptop Studio, Pro 8
You have to log in to shop/see prices.
|
|
KENSINGTON n SD5750T - Docking station - Thunderbolt 4 - 3 x Thunderbolt - 1GbE - 180 Watt - for Microsoft Surface Laptop Studio, Pro 8
-
Ports
8
-
Display Ports
0
-
HDMI Ports
0
-
Network
1
|
Description
Specifications
Related products
Designed exclusively for Surface, the SD5750T Thunderbolt™ 4 Dual 4K Dock (DFS) offers premium Thunderbolt benefits now and into the future. Compatible with USB4/Thunderbolt 4-enabled Surface laptops, supporting USB-C and USB-A accessories and provides full Power Delivery regardless of how many devices are connected. Features include 11-ports [4 x Thunderbolt 4, 4 x USB-A (1 x 5V/1.5A charging port on the front and 3 x Gen2 @ 10Gbps ports on the rear), 1 x Gigabit Ethernet port, 1 x audio combo jack and 1 x UHS-II SD 4.0 card reader], Single 8K @ 30 Hz or up to Dual 4K @ 60Hz video, 40Gbps data transfer speeds, secure and manageable Intel VT-d DMA protection, a zero-footprint mounting option, security cable lock slots, free Kensington DockWorks™ software and a three-year warranty.
Best For: USB4/Thunderbolt 4 Surface devices. Supports Single 8K or Dual 4K video
Warranty: 3 Years
*This dock supports the Gigabit Ethernet standard which provides a maximum data rate of 1Gbps. Actual Ethernet speeds may vary depending on, but not limited to, Internet bandwidth, Ethernet cables, network switches and the hardware and firmware performance of the host computer.
Connection Technology: Thunderbolt 4
Power Delivery: Supports USB-C PD 3.0 (90W of laptop charging)
Compatibility: Windows 10
No. of Monitors Supported: 2
Video Ports: Thunderbolt 4 ports
Maximum Resolution Supported: Thunderbolt - Single 8K 30Hz or Dual 4K 60Hz via the available Thunderbolt 4 ports
Plug and Play: Plug and play installation, optional Kensington DockWorks™ software is recommended for the best connection, performance and security from your Kensington docking station
System Requirements: Compatible with USB4/Thunderbolt 4 Surface devices
| Connectivity technology | Wired |
| Host interface | Thunderbolt 4 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB Power Delivery | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 90 W |
| Thunderbolt 4 ports quantity | 4 |
| Combo headphone/mic port | Yes |
| USB Sleep-and-Charge | Yes |
| DC-in jack | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,1000,100 Mbit/s |
| Product colour | Grey |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
| Data transfer rate | 40 Gbit/s |
| HD type | 8K Ultra HD |
| Number of displays supported | 2 |
| Maximum refresh rate | 60 Hz |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Plug and Play | Yes |
| Compatibility | Surface Pro 8, Surface Pro 9 (Intel), Surface Laptop 5 (15"), Surface Laptop Studio, Surface Laptop 5 (13.5") |
| Windows operating systems supported | Yes |
| Weight | 1.5 kg |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 84733020 |
| Compatible operating systems | Windows 10 or above |
