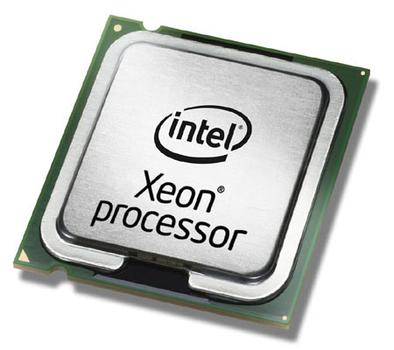

INTEL l Xeon E5-2650V4 - 2.2 GHz - 12-core - 24 threads - 30 MB cache - LGA2011 Socket - OEM

Intel® Xeon® Processor E5-2650 v4

• Product Collection Intel® Xeon® Processor E5 v4 Family
• Code Name Products formerly Broadwell
• Vertical Segment Server
• Processor Number E5-2650V4
• Lithography 14 nm

• # of Cores 12
• # of Threads 24
• Processor Base Frequency 2.20 GHz
• Max Turbo Frequency 2.90 GHz
• Cache 30 MB SmartCache
• Bus Speed 9.6 GT/s QPI
• # of QPI Links 2
• TDP 105 W
• VID Voltage Range 0

• Max Memory Size (dependent on memory type) 1.54 TB
• Memory Types DDR4 1600/1866/2133/2400
• Max # of Memory Channels 4
• Max Memory Bandwidth 76.8 GB/s
• Physical Address Extensions 46-bit
• ECC Memory Supported : Yes

• Scalability 2S
• PCI Express Revision 3.0
• PCI Express Configurations x4, x8, x16
• Max # of PCI Express Lanes 40

• Sockets Supported FCLGA2011-3
• Max CPU Configuration 2
• TCASE 80°C
• Package Size 45mm x 52.5mm

• Intel® Turbo Boost Technology 2.0
• Intel® vPro™ Platform Eligibility : Yes
• Intel® Hyper-Threading Technology : Yes
• Intel® Virtualization Technology (VT-x) : Yes
• Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
• Intel® VT-x with Extended Page Tables (EPT) : Yes
• Intel® TSX-NI : Yes
• Intel® 64 : Yes
• Instruction Set 64-bit
• Instruction Set Extensions Intel® AVX2
• Idle States : Yes
• Enhanced Intel SpeedStep® Technology : Yes
• Intel® Demand Based Switching : Yes
• Thermal Monitoring Technologies : Yes
• Intel® Flex Memory Access : No
• Intel® Identity Protection Technology : No

• Intel® AES New Instructions : Yes
• Secure Key : Yes
• Intel® OS Guard : Yes
• Intel® Trusted Execution Technology : Yes
• Execute Disable Bit : Yes
