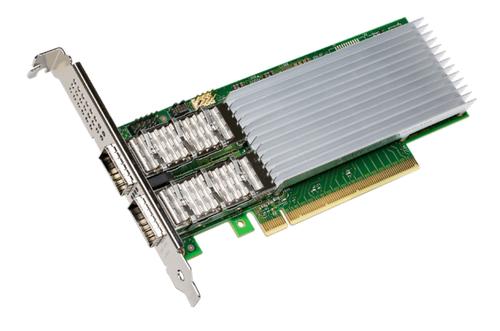

INTEL l Ethernet Network Adapter E810-CQDA2 - Network adapter - PCIe 4.0 x16 low profile - QSFP28 x 2
Frontpage
INTEL l Ethernet Network Adapter E810-CQDA2 - Network adapter - PCIe 4.0 x16 low profile - QSFP28 x 2
You have to log in to shop/see prices.
|
INTEL l Ethernet Network Adapter E810-CQDA2 - Network adapter - PCIe 4.0 x16 low profile - QSFP28 x 2
Product number:
E810CQDA2
-
Host Interface
PCI Express
-
Interface
Fiber, QSFP28
-
Speed
100Gbps
-
Ports
2
-
PCI V.
4.0
|
Description
Specifications
iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.
Intel® Data Direct I/O Technology
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.
PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
Connectivity technology | Wired |
Host interface | PCI Express |
Interface | Fiber |
Fiber ports quantity | 2 |
Fiber optic connector | QSFP28 |
PCI version | 4.0 |
Maximum data transfer rate | 100000 Mbit/s |
Ethernet LAN data rates | 1000,10000,25000,50000,100000 Mbit/s |
LAN controller | Intel E810 |
Internal | Yes |
Component for | Server/workstation |
Operating temperature (T-T) | 0 - 60 °C |
Storage temperature (T-T) | -40 - 70 °C |
Harmonized System (HS) code | 85176990 |
Cable type | QSFP28 ports - DAC, Optics, and AOC's |
Intel Virtual Machine Device Queues (VMDq) | Yes |
PCI-SIG* SR-IOV Capable | Yes |
On-chip QoS and Traffic Management | Yes |
Intel Flexible Port Partitioning | Yes |
Speed & slot width | 16.0 GT/s, x16 Lane |
Intelligent Offloads | Yes |
iWARP/RDMA | Yes |
Intel Data Direct I/O Technology | Yes |
Intel Virtualization Technology for Connectivity (VT-c) | Yes |
Interface type | PCIe v4.0 (16 GT/s) |
Product type | Network Interface Card |
Processor family | 800 Network Adapters (up to 100GbE)-800 Network Adapters (up to 100GbE) |
Export Control Classification Number (ECCN) | 5A991 |
Commodity Classification Automated Tracking System (CCATS) | NA |
Controller type | Intel(R) Ethernet Controller E810 |
Cabling type | QSFP28 ports - DAC, Optics, and AOC's |
Bracket height | Low-Profile (LP) / Full-Height (FH) |
Storage Over Ethernet | iSCSI, NFS |
Launch date | Q3'20 |
Network interface card cable medium | Copper, Fiber |
Network interface card type | Server |
Status | Launched |
Product series | 800 Series Network Adapters (up to 100GbE) |
