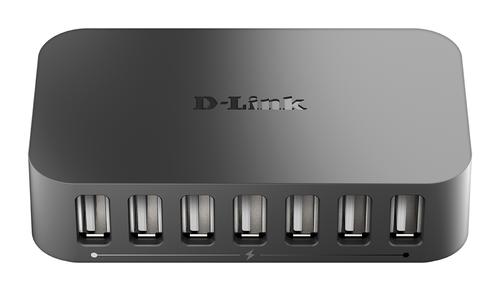

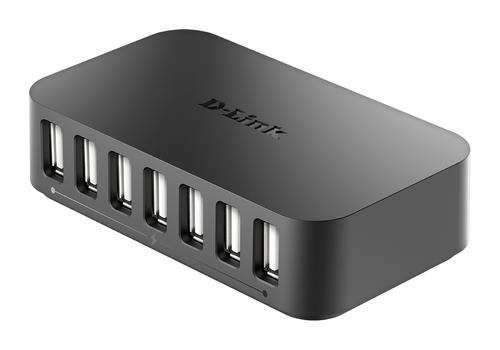

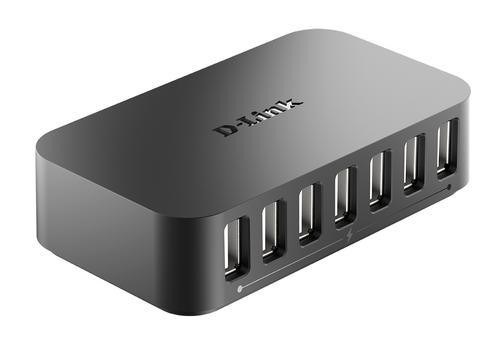

D-LINK 7-Port Hi-speed USB 2.0 Hub
You have to log in to shop/see prices.
|
|
D-LINK 7-Port Hi-speed USB 2.0 Hub
-
Ports
7
-
Display Ports
0
-
HDMI Ports
0
-
Network
0
|
Description
Specifications
High Speed USB 2.0 7-Port Hub
• PC & Mac Compatible
• Up to 40 Times Faster* than USB 1.1
• Backwards Compatible with USB 1.1
The D-Link QuickMedia DUB-H7 2.0 is a Hi-Speed USB 2.0 7-port hub that is backward compatible with USB 1.0 and 1.1. The DUB-H7 allows connection of up to seven additional USB peripherals or devices to your USB ready PC or Mac.
Designed to provide quick and easy access, the D-Link DUB-H7 provides seven Type A USB downstream ports for connecting USB peripherals, devices, or other USB hubs. A single Type B upstream port connects the DUB-H7 to the host computer or another USB hub, enabling up to 127 devices to be connected by cascading multiple hubs.
Configured directly by the operating system, the D-Link DUB-H7 operates seamlessly with both Microsoft WindowsTM and Apple MacintoshTM Operating Systems.
Diagnostic LEDs provide port status for each port and power status. The DUB-H7 includes an Installation Guide, a 6-foot Hi-Speed USB 2.0 certified A to B cable, and power adapter.
The DUB-H7 is backward compatible with USB 1.0 and USB 1.1, allowing you to connect all your existing USB peripherals and integrates easily in your existing network at home or in the office.
| Standards |
- USB Specification Version 2.0
- USB Specification Version 1.1
- USB Specification Version 1.0
- OHCI (Open Host Controller
Interface)
- EHCI (Enhanced Host Controller
Interface) |
| Operating Systems |
- Mac OS X 10.1 and above with
USB Support
- Microsoft Windows XP, ME, 2000,
98SE with USB Support |
| Supplied Current |
Self-Powered Mode: 500mA per port |
| Ports |
- One upstream USB Type B Port
- Seven downstream USB Type A Ports
|
| Dimensions |
99.6 mm x 59.5 mm x 25.7 mm |
| Connectivity |
Up to 127 devices by cascading
multiple hubs |
| LEDs |
|
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
0 to 95%, non-condensing |
| Humidity |
5% to 95%, non-condensing |
| Power Requirements |
Self Powered -12.6W, 3 A @ 5 VDC |
| Power supply |
Output 5V 3A |
| Compliances |
CE, FCC Class B, VCCI, UL |
| Warranty |
1 Year |
Ports & interfaces |
|---|
| Ports quantity | 7 |
| Host interface | USB 2.0 |
| Hub interfaces | USB 2.0 |
| I/O ports | 7x downstream USB Type A Ports
1x upstream USB Type B Port |
System requirements |
|---|
| Minimum system requirements | USB |
| Compatible operating systems | Windows XP/ME/2000/98SE
Mac OS X 10.1 or later |
Weight & dimensions |
|---|
| Weight | 85 g |
Packaging data |
|---|
| Package width | 150 mm |
| Package depth | 225 mm |
| Package height | 68 mm |
| Package weight | 465.5 g |
Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Logistics data |
|---|
| Pallet gross weight (air) | 176.3 kg |
| Master (outer) cases per pallet (air) | 36 pc(s) |
| Products per pallet (air) | 360 pc(s) |
| Pallet height (air) | 114 cm |
| Pallet gross weight (sea) | 308.5 kg |
| Master (outer) cases per pallet (sea) | 63 pc(s) |
| Products per pallet (sea) | 630 pc(s) |
| Pallet height (sea) | 193 cm |
| Pallet gross width | 110 cm |
| Pallet gross length | 120 cm |
| Shipping (inner) case width | 31.4 cm |
| Shipping (inner) case length | 36 cm |
| Harmonized System (HS) code | 84719000 |
| Shipping (inner) case height | 25.3 cm |
| Shipping (inner) case gross weight | 4.58 kg |
| Products per shipping (inner) case | 10 pc(s) |
| Shipping (inner) case net weight | 2.51 kg |
Other features |
|---|
| Interface | USB, OHCI, EHCI |
| Safety | CE, FCC Class B, VCCI, UL |
| Mac compatibility | Yes |
| Dimensions (WxDxH) | 99.6 x 59.5 x 25.7 mm |
| Power requirements | 12.6W, 3 A @ 5 VDC |
