CISCO i Dual-Band Sector Antenna - Antenna - 12 dBi, 9 dBi - directional - outdoor, wall-mountable, pole mount, indoor
Product number:
MA-ANT-27
|
Description
Specifications

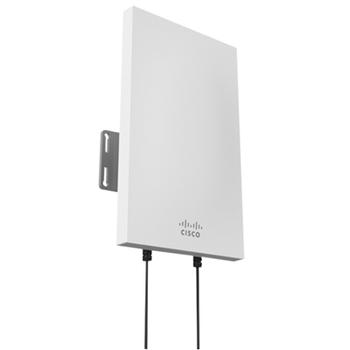

The Cisco Meraki ANT-27 sector antenna is a 9 / 12 dBi, MIMO, dual–band 2.4 and 5 GHz antenna ideal for providing client coverage over focused areas or creating backhaul links. It is designed for use with Meraki APs that have N-type connectors.
| Antenna gain level (max) | 12 dBi |
| Frequency band | 2.400 – 2.500, 5.150 – 5.875 |
| Gain | 9 / 12 dBi |
| Antenna gain (2.4 GHz) | 9 dBi |
| Antenna gain (5 GHz) | 12 dBi |
| Horizontal beam width | 65° |
| Vertical beam width | 18° |
| Antenna type | Sector antenna |
| Antenna connector type | N-type |
| Ultraviolet (UV) resistant | Yes |
| Mounting | Wall/Pole |
| Purpose | Indoor & outdoor |
| Housing material | Plastic |
| Product colour | White |
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 140 mm |
| Depth | 48 mm |
| Height | 230 mm |
| Weight | 630 g |
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
| Package type | Box |
