ASUS S PRIME H610M-A WIFI D4 - Motherboard - micro ATX - LGA1700 Socket - H610 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN, Wi-Fi, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel (90MB1C80-M0EAY0)
ASUS S PRIME H610M-A WIFI D4 - Motherboard - micro ATX - LGA1700 Socket - H610 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN, Wi-Fi, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel (90MB1C80-M0EAY0)
ASUS S PRIME H610M-A WIFI D4 - Motherboard - micro ATX - LGA1700 Socket - H610 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN, Wi-Fi, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel (90MB1C80-M0EAY0)
ASUS S PRIME H610M-A WIFI D4 - Motherboard - micro ATX - LGA1700 Socket - H610 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN, Wi-Fi, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel (90MB1C80-M0EAY0)
ASUS S PRIME H610M-A WIFI D4 - Motherboard - micro ATX - LGA1700 Socket - H610 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN, Wi-Fi, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel (90MB1C80-M0EAY0)
ASUS S PRIME H610M-A WIFI D4 - Motherboard - micro ATX - LGA1700 Socket - H610 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN, Wi-Fi, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel (90MB1C80-M0EAY0)
ASUS S PRIME H610M-A WIFI D4 - Motherboard - micro ATX - LGA1700 Socket - H610 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN, Wi-Fi, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel (90MB1C80-M0EAY0)
ASUS S PRIME H610M-A WIFI D4 - Motherboard - micro ATX - LGA1700 Socket - H610 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN, Wi-Fi, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel (90MB1C80-M0EAY0)
ASUS S PRIME H610M-A WIFI D4 - Motherboard - micro ATX - LGA1700 Socket - H610 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN, Wi-Fi, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel (90MB1C80-M0EAY0)
ASUS S PRIME H610M-A WIFI D4 - Motherboard - micro ATX - LGA1700 Socket - H610 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN, Wi-Fi, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel (90MB1C80-M0EAY0)
ASUS S PRIME H610M-A WIFI D4 - Motherboard - micro ATX - LGA1700 Socket - H610 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN, Wi-Fi, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel (90MB1C80-M0EAY0)
ASUS S PRIME H610M-A WIFI D4 - Motherboard - micro ATX - LGA1700 Socket - H610 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN, Wi-Fi, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel (90MB1C80-M0EAY0)

ASUS S PRIME H610M-A WIFI D4 - Motherboard - micro ATX - LGA1700 Socket - H610 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN, Wi-Fi, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel

Product number:
90MB1C80-M0EAY0
EAN:
4711081758211
  • Socket LGA 1700 (Socket V)
  • Chipset Intel H610
  • M.2 Slot 2
  • Memory slots 2 x DIMM, DDR4
  • Max RAM frequency 3.2GHz
  • Max Memory Supported 64GB
  • Form Factor micro ATX
In stock
Description

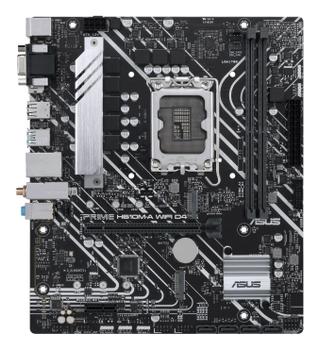

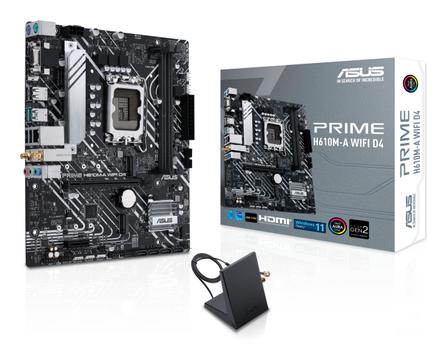

PRIME H610M-A WIFI D4

Features:
  • Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
  • Comprehensive cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+
  • Ultrafast connectivity: 32Gbps M.2 slot, Intel® 1 Gb Ethernet, WIFI 5 and USB 3.2 Gen 2 ports
  • Aura Sync RGB: Onboard addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
Specifications:

CPU
  • Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
hipset
  • Intel® H610 Chipset
Memory
  • 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
Graphics
  • 1 x DisplayPort
  • 1 x D-Sub port
  • 1 x HDMI® port
Expansion Slots
  • Intel® 12th Gen Processors 1 x PCIe 4.0 x16 slot
  • Intel® H610 Chipset 1 x PCIe 3.0 x1 slot
Storage
  • Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
  • Intel® H610 Chipset
    • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
    • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
    • 4 x SATA 6Gb/s ports
Ethernet
  • 1 x Intel® 1Gb Ethernet
Wireless & Bluetooth
  • Wi-Fi 5
  • Wi-Fi 5 (802.11 a/b/g/n/ac)
  • Supports 2.4/5GHz frequency band
  • Bluetooth v5.0
USB
  • Rear USB (Total 6 ports)
    • 2 x USB 3.2 Gen 2 ports (2 x Type-A)
    • 4 x USB 2.0 ports (4 x Type-A)
  • Front USB (Total 5 ports)
    • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
    • 2 x USB 2.0 headers support additional 3 USB 2.0 ports
Audio
  • Realtek 7.1 Surround Sound High Definition Audio CODEC
    • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    • Supports up to 24-Bit/192 kHz playback
  • Audio Features
    • Audio Shielding
    • Premium audio capacitors
    • Dedicated audio PCB layers
Back Panel I/O Ports
  • 2 x USB 3.2 Gen 2 ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI® port
  • 1 x D-Sub port
  • 1 x Wi-Fi Module
  • 1 x Intel® 1Gb Ethernet port
  • 3 x Audio jacks
  • 1 x PS/2 Keyboard (purple) port
  • 1 x PS/2 Mouse (green) port
Internal I/O Connectors
  • Fan and Cooling related
    • 1 x 4-pin CPU Fan header
    • 2 x 4-pin Chassis Fan headers
  • Power related
    • 1 x 24-pin Main Power connector
    • 1 x 8-pin +12V Power connector
  • Storage related
    • 2 x M.2 slots (Key M)
    • 4 x SATA 6Gb/s ports
  • USB
    • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
    • 2 x USB 2.0 headers support additional 3 USB 2.0 ports
  • Miscellaneous
    • 3 x Addressable Gen 2 headers
    • 2 x AURA RGB headers
    • 1 x Clear CMOS header
    • 1 x Front Panel Audio header (AAFP)
    • 1 x COM Port header
    • 1 x S/PDIF Out header
    • 1 x Speaker header
    • 1 x SPI TPM header (14-1pin)
    • 1 x 10-1 pin System Panel header
Special Features
  • ASUS 5X PROTECTION III
    • DIGI+ VRM
    • LANGuard
    • Overvoltage Protection
    • SafeSlot Core
    • Stainless-Steel Back I/O
  • ASUS Q-Design
    • Q-DIMM
    • Q-Slot
  • ASUS Thermal Solution
    • VRM heatsink design
  • AURA Sync
    • AURA RGB headers
    • Addressable Gen 2 headers
Software Features
  • ASUS Exclusive Software
  • Armoury Crate
    • AURA Creator
    • AURA Sync
    • Fan Xpert 2+
  • AI Suite 3 Performance And Power Saving Utility
  • TurboV EVO
  • EPU
  • DIGI+ VRM
  • ASUS CPU-Z
  • MyASUS
  • Norton Anti-virus software (Free Trial version)
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
    • ASUS CrashFree BIOS 3
    • ASUS EZ Flash 3
    • ASUS UEFI BIOS EZ Mode
BIOS
  • 128 Mb Flash ROM, UEFI AMI BIOS
Manageability
  • WOL by PME, PXE
Accessories
  • Cables 2 x SATA 6Gb/s cables
  • Miscellaneous
    • 1 x ASUS Wi-Fi moving antennas
    • 1 x I/O Shield
    • 1 x M.2 SSD screw package
  • Installation Media 1 x Support DVD
  • Documentation 1 x User guide
Operating System
  • Windows® 11 64-bit, Windows® 10 64-bit
Form Factor
  • mATX Form Factor
  • 9.6 inch x 8.3 inch ( 24.4 cm x 21.1 cm )
