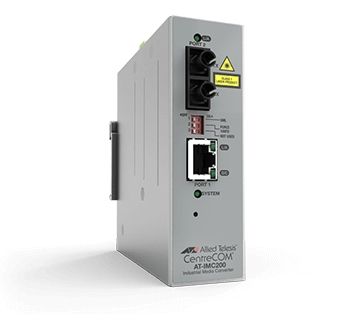

Allied Telesis s Industrial Ethernet Media Converter AT-IMC200T/SC - Fibre media converter - 100Mb LAN - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 / SC multi-mode - up to 2 km
Frontpage
Allied Telesis s Industrial Ethernet Media Converter AT-IMC200T/SC - Fibre media converter - 100Mb LAN - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 / SC multi-mode - up to 2 km
You have to log in to shop/see prices.
|
Allied Telesis s Industrial Ethernet Media Converter AT-IMC200T/SC - Fibre media converter - 100Mb LAN - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 / SC multi-mode - up to 2 km
Product number:
AT-IMC200T/SC-980
|
Description
Specifications
10/100/1000T to 100FX/SC industrial temperature media converter. These converters feature Smart MissingLink™ (SML) and support up to 10K jumbo frames. The IMC200T/SC-980 can be mounted on a DIN-rail or used as a desktop/standalone device and is fanless for silent operation.
Powering remote devices
Allied Telesis IMC200/2000 Series Industrial Media Converters (IMCs) are ideal for powering remote devices, such as IP phones, video cameras and wireless Access Points (APs), which are more than 100m from a Power over Ethernet (PoE) switch. Each IMC can provide up to 70W of PoE.
The 2000T/SP and the 2000TP/SP each feature a 10/100/1000T twisted-pair port, and an SFP port which supports and auto detects 100X and 1000X optics. No switch configuration is needed. Allied Telesis offers a wide variety of SFPs featuring multimode, single mode and BiDi optics.
Models with a fixed fiber-optic port are available with SC or LC connectors. With these, you can achieve distances up to 2 km (100Mps) or 550 m (1000Mps). With the SFP model, you can achieve greater distances using a long-range SFP.
In addition to transmitting data, the twisted-pair port also injects power down the cable, allowing a remote PoE powered device to operate without any additional power source. All PoE+ devices (IEEE802.3at compliant) are supported. All PoE+ devices support 802.3at, PoE+, LTPoE++ and 4-pair. The PC200x PoE+ Series can deliver up to 70W of power to the remote device.
Remote Power Cycle
The IMC200/2000 Series supports the Remote Power Cycle feature. This allows a remote administrator to log in to the host switch device and disable the switch port to which the IMC is attached, causing the PoE+ device to lose power. This allows administrators to reset remote devices without physically going to the location.
Jumbo frame support
Many backbone switch products support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) which sends extra-long data packets on the network. The IMC200/2000 Series are fully compatible with these long packets, enabling them to be used in modern networks.
Smart MissingLink™ (SML)
The SML feature monitors network connections and provides a notification when a link fails, allowing administrators to quickly identify the source and location of failed links, and thus minimize downtime.
Maximum data transfer rate | 100 Mbit/s |
Converter input interface | 10Base-T, 100Base-T, 1000Base-T |
Converter output interface | 100Base-FX |
Ethernet interface type | Fast Ethernet |
Ethernet LAN data rates | 10,100 Mbit/s |
Packet forwarding rate (10 Mbps) | 14880 pps |
Packet forwarding rate (100 Mbps) | 148800 pps |
Packet forwarding rate (1 Gbps) | 1488000 pps |
Jumbo frames support | Yes |
Jumbo frames | 10000 |
VLAN support | Yes |
Auto MDI/MDI-X | Yes |
Auto-negotiation | Yes |
Store-and-forward | Yes |
Connectivity technology | Wired |
Ethernet LAN (RJ-45) ports | 1 |
Fiber ports quantity | 1 |
Fiber optic connector | SC |
Maximum transfer distance | 2000 m |
Wavelength | 1310 nm |
Tx power (min) | -19 dBmW |
Tx power (max) | -14 dBmW |
Rx power (min) | -32 dBmW |
Rx power (max) | -3 dBmW |
Internal | No |
LED indicators | Yes |
Product colour | Grey |
International Protection (IP) code | IP30 |
DIN rail mounting | Yes |
Safety | UL 62368-1, EN 62368-1, UL 60950-1 (UL mark), CAN/CSA C22.2 No. 60950-1 (cUL mark), EN 60950-1 (TUV mark) |
Certification | TAA
EMI/Emission & Stability
FCC Class A
EN55024 (immunity standard)
EN55032 Class A
EN55035
VCCI Class A |
Input voltage | 12 - 48 V |
Width | 111 mm |
Depth | 96 mm |
Height | 35 mm |
Weight | 748 g |
Operating temperature (T-T) | -40 - 75 °C |
Storage temperature (T-T) | -40 - 85 °C |
Operating relative humidity (H-H) | 5 - 95% |
Storage relative humidity (H-H) | 5 - 95% |
Operating altitude | 0 - 3048 m |
Compliance certificates | RoHS |
