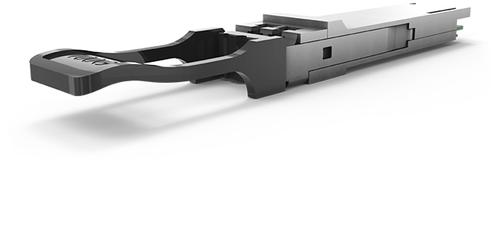

Allied Telesis s AT QSFP28-LR4 - QSFP28 transceiver module - 100GbE - 100GBase-LR4 - LC single-mode - up to 10 km - 1296 nm / 1300 nm / 1304 nm / 1308 nm - for P/N: 3868R
Frontpage
Allied Telesis s AT QSFP28-LR4 - QSFP28 transceiver module - 100GbE - 100GBase-LR4 - LC single-mode - up to 10 km - 1296 nm / 1300 nm / 1304 nm / 1308 nm - for P/N: 3868R
You have to log in to shop/see prices.
|
|
Allied Telesis s AT QSFP28-LR4 - QSFP28 transceiver module - 100GbE - 100GBase-LR4 - LC single-mode - up to 10 km - 1296 nm / 1300 nm / 1304 nm / 1308 nm - for P/N: 3868R
Product number:
AT-QSFP28LR4
|
Description
Specifications
Quad Small Form-Factor Pluggable Modules
The Allied Telesis QSFP28 Series offers the latest industry-standard
connectivity in a flexible, small form factor. These hot-swappable
transceiver modules simply plug into any compatible Allied Telesis product.
Options
Allied Telesis QSFP28 Series 100 Gigabit Quad Small Form-Factor Pluggables (QSFPs) are supported on all Allied Telesis devices with QSFP28 uplink connections.
The QSFP28 is hot-swappable to allow for network changes without removal or reconfiguration of costly network equipment.
Applications
The QSFP28 Series supports 100GbE interconnects. They are ideal for Datacom/Telecom switch and router connections, as well as data aggregation, backplane, proprietary protocol and high-density applications.
Interoperability
The Allied Telesis QSFP28 is fully compliant with industry-standard networking regulations so it may be used on any networking equipment which complies with industry standards.
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 100000 Mbit/s |
| Interface type | QSFP28 |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | LR4 |
| Maximum transfer distance | 10000 m |
| Wavelength | 1308 nm |
| Link budget | 5 dB |
| Ethernet interface type | 100 Gigabit Ethernet |
| Networking standards | IEEE 802.3ba, IEEE 802.3bm |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Product colour | Silver |
| Power consumption (typical) | 4 W |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Number of products included | 1 pc(s) |
| Compliance certificates | RoHS |
| Sustainability compliance | Yes |
